TELEMECANIQUE

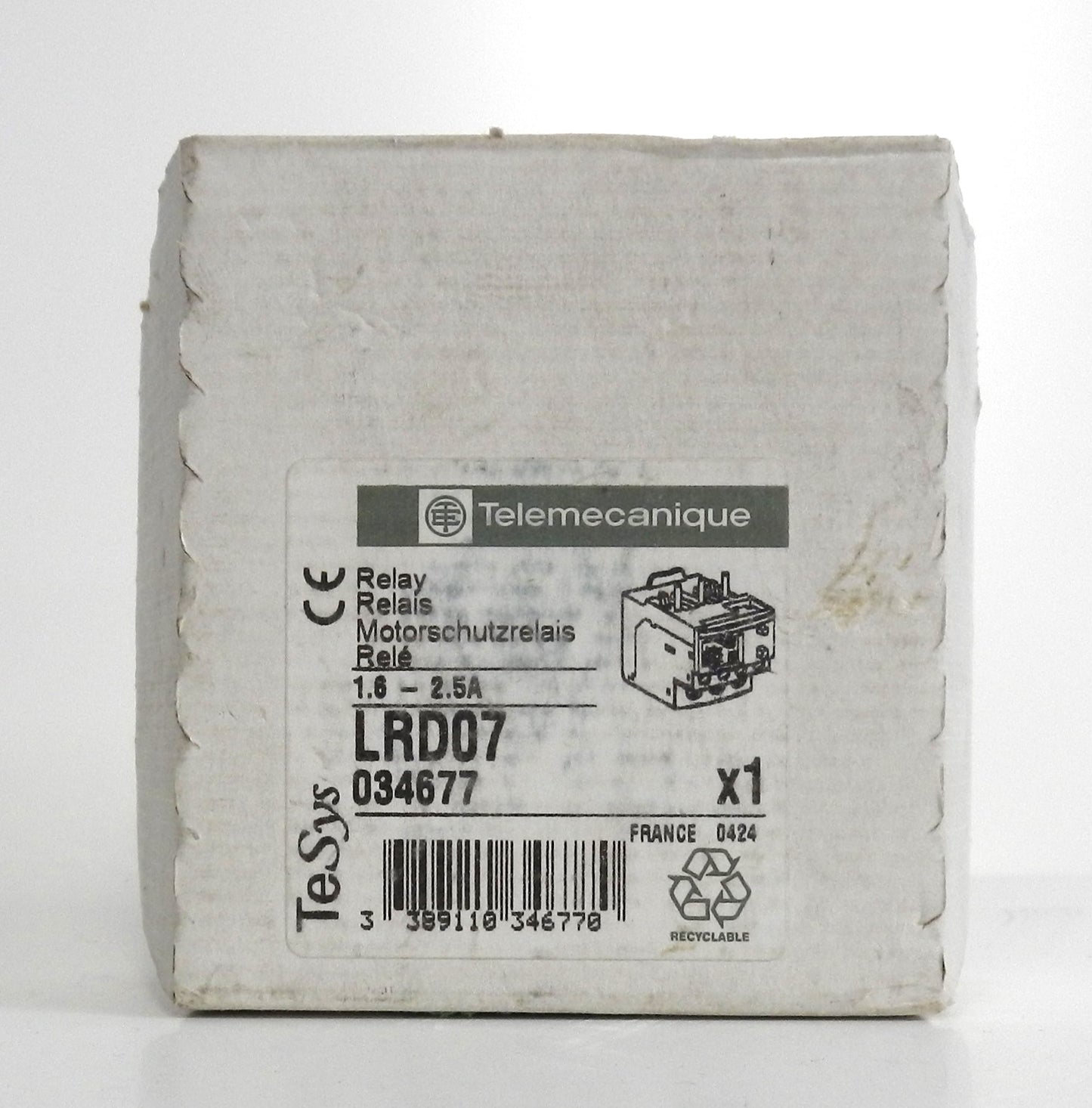

LRD07 Telemecanique TeSys Thermal Overload Relay 1.6-2.5A Class 10A Motor Protection

$99.99 CAD

Sale Sold out

Style NEW

Description:

Genuine Telemecanique / Schneider Electric TeSys thermal overload relay for industrial motor protection
Adjustable thermal overload setting from 1.6 to 2.5 Amps for precise motor protection
Class 10A tripping characteristic designed to protect AC motors against overload and phase failure
Compatible with TeSys D contactors including LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, and LC1D38
Features 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts for control and signaling
Manual and automatic reset selection with integrated STOP and TEST functions
Mounts directly beneath compatible contactors or on a DIN rail/panel using optional accessories
Suitable for both AC and DC control circuits
Ideal for motor starters, conveyors, pumps, compressors, HVAC equipment, machine tools, and industrial automation systems
Designed for reliable overload protection in manufacturing, OEM equipment, and industrial control panels.

Manufacturer Name: Telemecanique / Schneider Electric
Part Number (MPN): LRD07
Product Series: TeSys Deca (LRD)
Product Type: Thermal Overload Relay
Thermal Protection Adjustment Range: 1.6–2.5 A
Overload Trip Class: Class 10A
Relay Type: Differential Thermal Overload Relay
Auxiliary Contacts:
- 1 NO
- 1 NC
Compatible Contactors:
- LC1D09
- LC1D12
- LC1D18
- LC1D25
- LC1D32
- LC1D38
Rated Operational Voltage: 690 VAC
Rated Insulation Voltage:
- 690 VAC (IEC)
- 600 VAC (UL/CSA)
Network Frequency: 0–400 Hz
Impulse Withstand Voltage: 6 kV
Mounting Options:
- Directly Under Contactor
- DIN Rail (with accessory)
- Panel Mount (with accessory)
Reset Type:
- Manual
- Automatic
Phase Failure Sensitivity: Yes
Standards:
- IEC 60947-4-1
- UL
- CSA
- CE
Applications:
- Motor Protection
- Motor Starters
- Industrial Automation
- Pumps
- Compressors
- Conveyors
- HVAC Systems
- OEM Machinery
