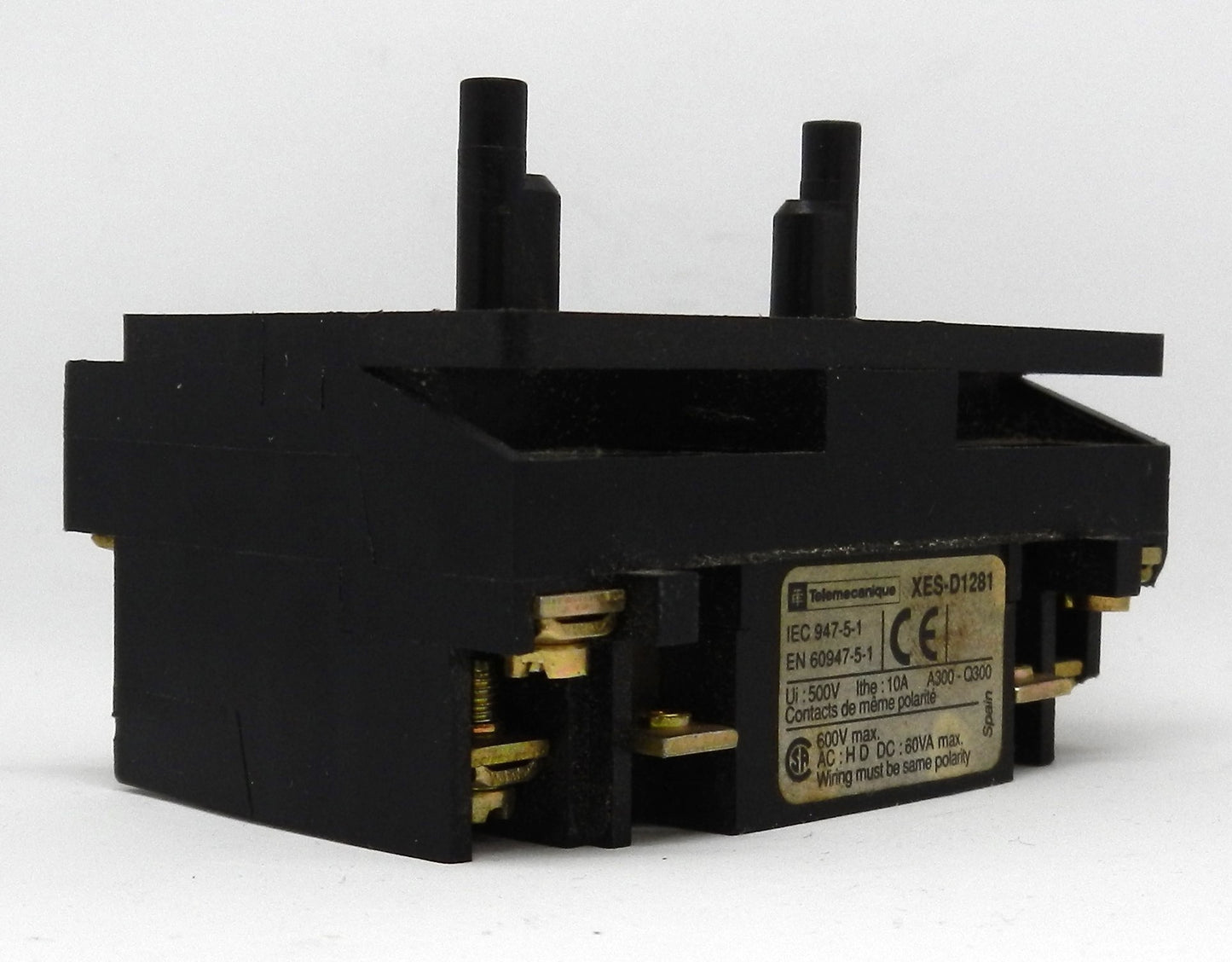

XES-D1281 Telemecanique Harmony XAC Pendant Station Contact Block 1NO + 1CO 10A 600VAC

Description:

• Genuine Telemecanique (Schneider Electric) contact block for Harmony XAC pendant control stations
• Designed as a replacement contact element for crane pendants, hoists, winches, and industrial operator stations
• Features 1 Normally Open (NO) + 1 Changeover (CO/SPDT) contact configuration
• Rated for 10A thermal current and 600 VAC control circuit applications
• Specifically designed for 2-speed spring-return pendant station operation with mechanical interlocking
• Screw-clamp terminals provide secure and vibration-resistant field wiring
• Compatible with Harmony XACB and XACM series pendant control stations
• Front-mount design allows quick installation and replacement without modifying the pendant station
• Ideal for overhead cranes, lifting equipment, hoists, conveyors, machine tools, material handling systems, and industrial automation
• Built to IEC standards with 1 million mechanical operations for long service life.

Specifications:

• Manufacturer Name: Telemecanique (Schneider Electric)
• Part Number (MPN): XES-D1281
• Alternate Part Number: XESD1281
• Product Series: Harmony XAC
• Product Type: Pendant Station Contact Block
• Contact Configuration:
  • 1 Normally Open (NO)
  • 1 Changeover (CO / SPDT)
• Contact Application: 2-Speed Control
• Rated Thermal Current (Ithe): 10 A
• Maximum Rated Voltage: 600 VAC
• Rated Insulation Voltage (Ui): 500 V
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Mechanical Durability: 1,000,000 Operations
• Terminal Type: Screw Clamp
• Connection Capacity:
  • 1 × 2.5 mm²
  • 2 × 1.5 mm²
• Mechanical Interlocking: Yes
• Electrical Protection Class: Class II
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +70°C
• Standards:
  • IEC 60947-5-1
  • EN 60947-5-1
  • CSA C22.2 No. 14
• Compatible Products:
  • Harmony XACB Pendant Stations
  • Harmony XACM Pendant Stations
• Applications:
  • Crane Controls
  • Hoists
  • Pendant Stations
  • Material Handling
  • Industrial Automation
  • Machine Control

Dimensions:

• Compact front-mounted contact block for Harmony XAC pendant stations.
• Designed for direct installation into compatible XACB and XACM enclosures.

Weight:

• Approximate Weight: 0.19 kg (0.42 lb).
