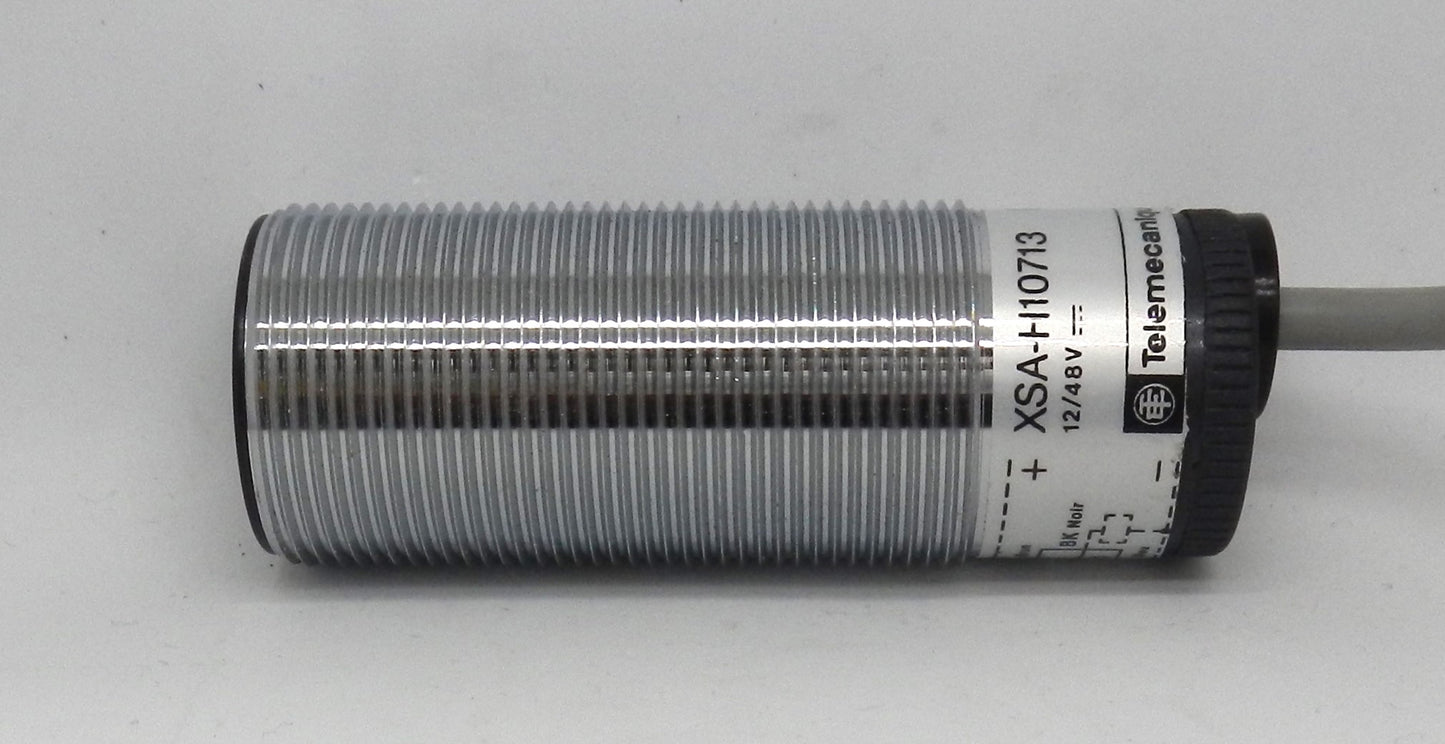

XSA-H10713 Telemecanique Inductive Proximity Sensor Switch 12-48VDC 3-Wire 2m Cable M30

Description:

• Genuine Telemecanique Sensors inductive proximity sensor for industrial automation and machine control applications
• Designed for reliable non-contact metal object detection
• Operates on 12–48 VDC with reverse polarity protection
• 3-wire DC configuration for easy integration into PLC and control systems
• Supplied with a 2-meter integral cable for quick installation
• Rugged M30 cylindrical metal housing for harsh industrial environments
• Flush-mount design allows installation in compact machine assemblies
• IP67 protection rating for resistance to dust and water ingress
• Ideal for conveyor systems, packaging machinery, material handling, production equipment, and OEM automation
• Discontinued by the manufacturer, commonly used for maintenance and replacement of existing systems.

Specifications:

• Manufacturer Name: Telemecanique Sensors (Schneider Electric)
• Part Number (MPN): XSA-H10713
• Product Type: Inductive Proximity Sensor
• Sensor Type: Inductive
• Series: XSA
• Sensor Design: Cylindrical M30
• Supply Voltage: 12–48 VDC
• Wiring Configuration: 3-Wire
• Output Type: DC Discrete
• Electrical Connection: 2 m Integral Cable
• Nominal Sensing Distance: 10 mm
• Switching Capacity: ≤ 200 mA
• Housing Material: Nickel-Plated Brass
• Front Face Material: PPS
• Thread Size: M30 × 1.5
• Protection Rating: IP67
• Reverse Polarity Protection: Yes
• Operating Frequency: Up to 100 Hz
• Certifications:
  • CE
  • UL
  • CSA
• Applications:
  • Industrial Automation
  • PLC Systems
  • Conveyor Systems
  • Packaging Equipment
  • Material Handling
  • Machine Automation
  • OEM Equipment

Dimensions:

• Sensor Diameter: 30 mm (M30 Thread)
• Body Length: 81 mm
• Cable Length: 2 m

Weight:

• Approximate Weight: 0.18 kg (0.40 lb).
