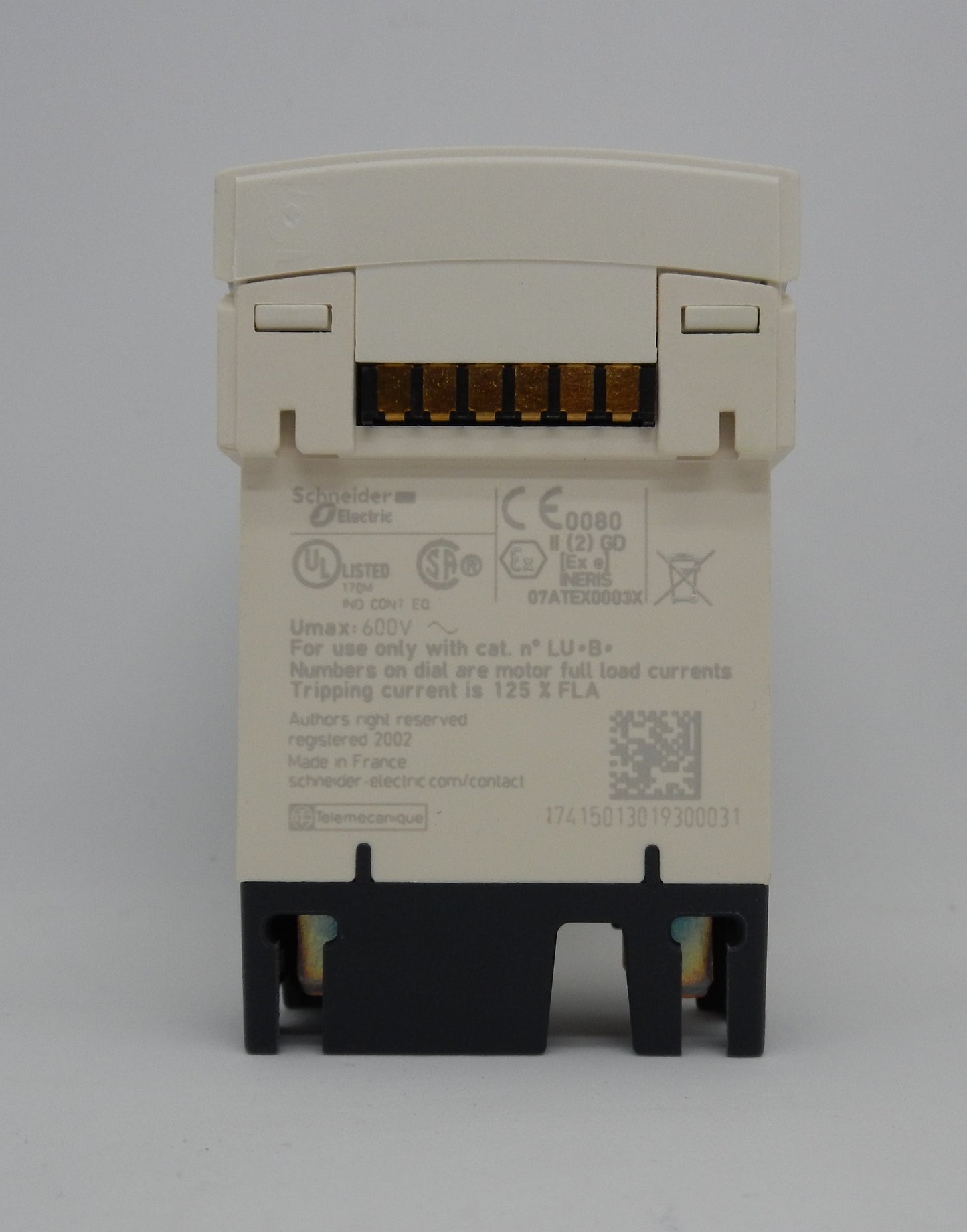

LUCC12BL Schneider Electric TeSys Ultra Advanced Control Unit 3-12A Class 10 24VDC

Description:

• Genuine Schneider Electric TeSys Ultra advanced control unit for intelligent motor protection and control
• Adjustable motor current range: 3–12A for precise overload protection
• 24V DC control voltage for integration with industrial automation systems
• Class 10 electronic thermal overload protection for rapid motor protection during overload conditions
• Provides advanced motor management including overload, short-circuit, phase failure, phase imbalance, and earth fault protection
• Manual reset function with built-in diagnostic capabilities for simplified maintenance
• Plug-in modular design enables quick installation and replacement with compatible TeSys Ultra power bases
• Compatible with LUB12, LUB32, LUB38, LUB120, LUB320, LUB380 power bases and LU2B12BL, LU2B32BL, LU2B38BL reversing motor starters
• Ideal for industrial motor control, machine automation, HVAC systems, conveyor systems, packaging equipment, and OEM machinery
• Designed for single-phase motors with advanced communication and diagnostic functions.

Specifications:

• Manufacturer Name: Schneider Electric
• Part Number (MPN): LUCC12BL
• Product Series: TeSys Ultra
• Product Type: Advanced Control Unit
• Device Application:
  • Motor Control
  • Motor Protection
• Motor Type: Single-Phase
• Rated Motor Current Adjustment Range: 3–12 A
• Control Circuit Voltage: 24 VDC
• Rated Operational Voltage: 690 VAC
• Network Frequency: 40–60 Hz
• Thermal Overload Class: Class 10
• Protection Functions:
  • Overload Protection
  • Short-Circuit Protection
  • Phase Failure Protection
  • Phase Imbalance Protection
  • Earth Fault Protection
• Reset Type: Manual
• Mounting Type: Plug-In (Front Mounted)
• Compatible Power Bases:
  • LUB12
  • LUB32
  • LUB38
  • LUB120
  • LUB320
  • LUB380
• Compatible Reversing Starters:
  • LU2B12BL
  • LU2B32BL
  • LU2B38BL
• Operating Temperature: -25°C to +55°C
• Protection Rating: IP20
• Certifications:
  • UL
  • CSA
  • CE
  • ATEX
  • IEC 60947-6-2
• Applications:
  • Motor Starters
  • Industrial Automation
  • HVAC Systems
  • Machine Control
  • Conveyor Systems
  • OEM Equipment
  • Packaging Machinery

Dimensions:

• Height: 66 mm (2.60 in)
• Width: 45 mm (1.77 in)
• Depth: 60 mm (2.36 in).

Weight:

• Approximate Weight: 0.14 kg (0.30 lb).
