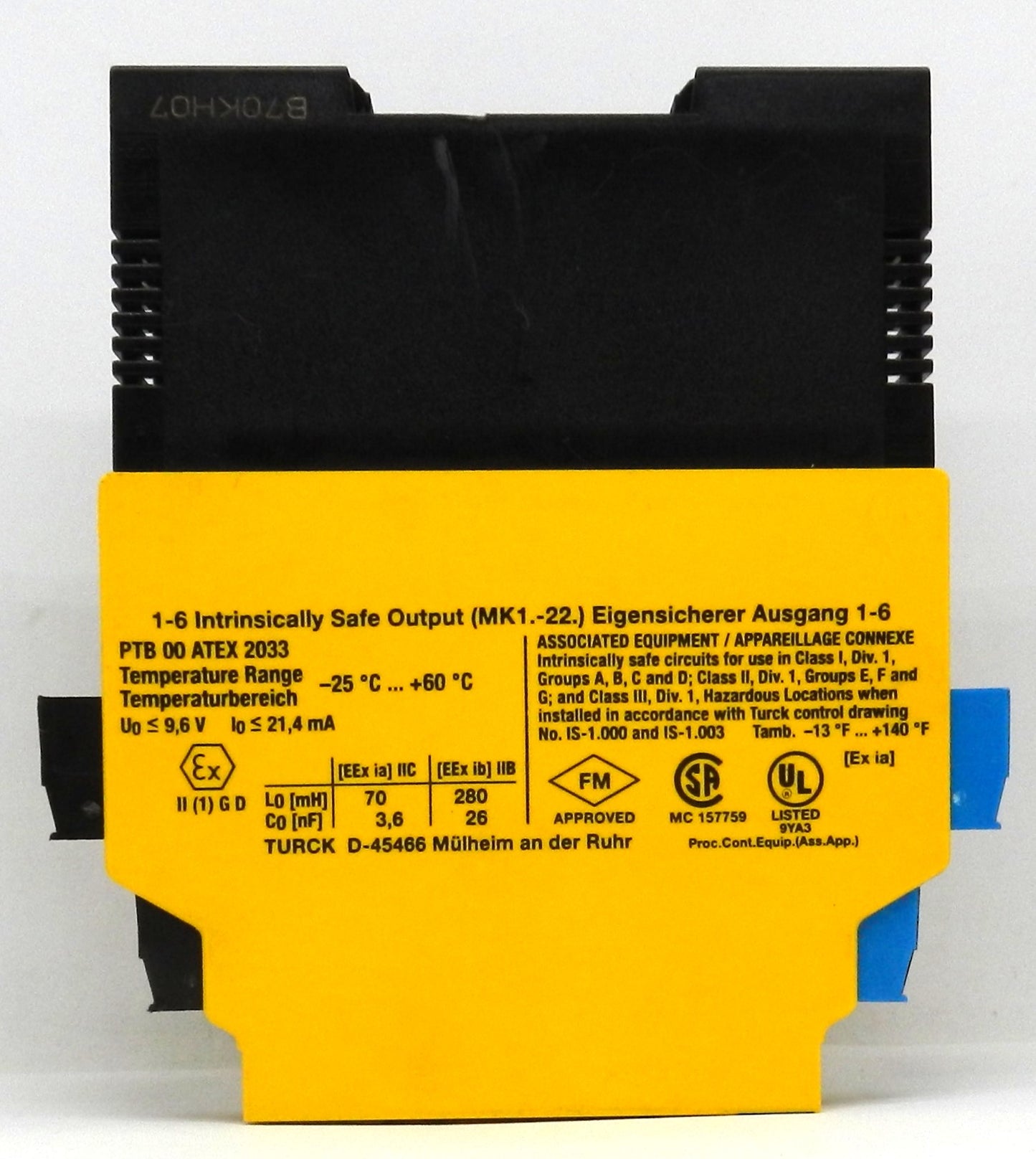

MK13-222Ex0-R/24VDC Turck 2-Channel NAMUR Switching Amplifier 24VDC

Description

• Turck intrinsically safe switching amplifier
• Model MK13-222Ex0-R/24VDC
• Dual-channel interface for NAMUR sensors
• Designed to provide galvanic isolation between hazardous-area sensors and control equipment
• Supports wire-break monitoring
• Supports short-circuit monitoring
• Relay outputs for industrial control applications
• LED indication for power, relay status and input circuit faults
• Suitable for hazardous-location instrumentation and industrial automation
• DIN rail mounting design

Specifications

• Manufacturer: Turck
• Part Number: MK13-222Ex0-R/24VDC
• Product Type: Switching Amplifier / NAMUR Isolating Amplifier
• Number of Channels: 2
• Sensor Input: NAMUR
• Supply Voltage: 10–30 VDC
• Nominal Application Voltage: 24 VDC
• Power Consumption: <1.5 W
• Relay Output Rating: Up to 250 VAC / 120 VDC
• Maximum Switching Capacity: 500 VA / 60 W
• Maximum Output Current: 2 A
• Intrinsically Safe Output: Terminals 1–6
• Maximum Intrinsically Safe Voltage (Uo): 9.6 V
• Maximum Intrinsically Safe Current (Io): 21.4 mA
• Operating Temperature: -25°C to +60°C
• Functions: Normally Open / Normally Closed Mode
• Monitoring: Wire Break and Short Circuit
• Indicators: Green Power LED and Yellow/Red Channel Status LEDs
• Approvals Shown: ATEX, FM, CSA and UL
• Mounting: DIN Rail

Dimensions

• Refer to manufacturer specifications for exact dimensions

Weight

• Refer to manufacturer specifications for exact weight
