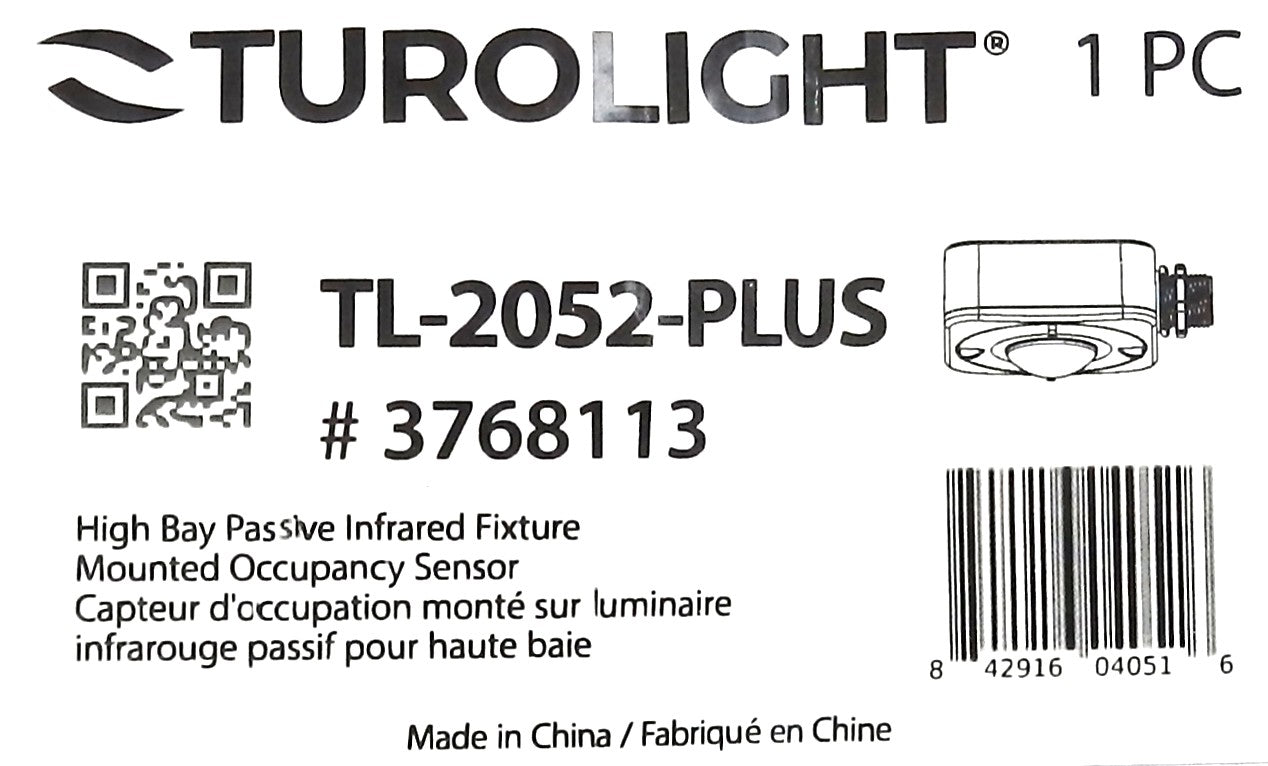

TL-2052-Plus Turolight PIR High Bay Occupancy Sensor 120-347V Fixture Mount 360°

Description:

• Turolight PIR high bay occupancy sensor designed for automatic lighting control in warehouses and industrial facilities
• Passive Infrared (PIR) technology with 360° detection for reliable occupancy sensing
• Fixture-mounted design installs directly into a 1/2-inch knockout on compatible high bay luminaires
• Operates on 120/277/347 VAC, eliminating the need for an external power pack
• Supports LED, CFL, T5, and T8 lighting fixtures
• Adjustable time delay from 15 seconds to 30 minutes for customized energy savings
• Detection coverage of approximately 450 sq. ft. with mounting heights up to 30 ft
• Adjustable sensitivity for optimized performance in different environments
• Self-contained relay switches lighting loads directly for simple installation
• Ideal for warehouses, manufacturing plants, gymnasiums, storage facilities, and commercial high bay lighting applications.

Specifications:

• Manufacturer Name: Turolight
• Part Number (MPN): TL-2052-Plus
• Product Type: High Bay Occupancy Sensor
• Sensor Technology: Passive Infrared (PIR)
• Detection Pattern: 360°
• Mounting Type: Fixture Mount
• Mounting Height: Up to 30 ft
• Coverage Area: Approximately 450 sq. ft.
• Operating Voltage: 120/277/347 VAC
• Frequency: 50/60 Hz
• Load Rating:
  • 800 W @ 120 VAC
  • 1200 W @ 277 VAC
  • 1500 W @ 347 VAC
• Operation Mode: Occupancy (Auto ON / Auto OFF)
• Adjustable Time Delay: 15 Seconds to 30 Minutes
• Adjustable Sensitivity: Yes
• LED Indicator: Yes
• Operating Temperature: 0°C to +55°C
• Certifications: cUL Listed, RoHS
• Application: High Bay LED Fixtures, Warehouses, Manufacturing Plants, Storage Rooms, Gymnasiums, Commercial and Industrial Lighting.

Dimensions:

• Height: 3.55 in
• Width: 3.55 in
• Depth: 1.57 in

Weight:

• Approximate Weight: 5 oz (0.14 kg).
