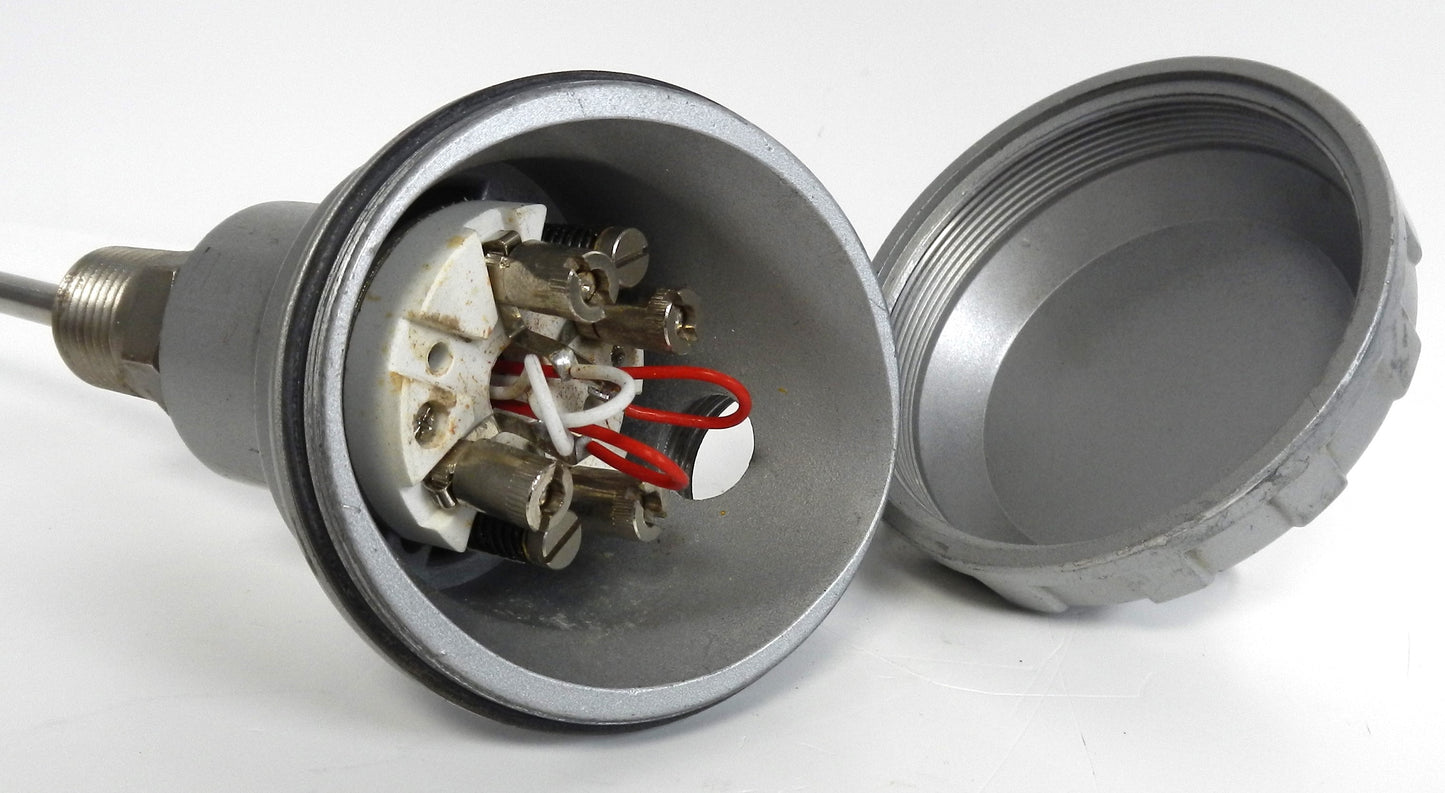

Type J Thermocouple Temperature Sensor Iron-Constantan Industrial Temperature Probe

$69.99 CAD

Sale Sold out

Style REFURBISH

Description:

Type J thermocouple temperature sensor designed for reliable temperature measurement in industrial and commercial applications
Uses Iron (Fe) positive conductor and Constantan (Cu-Ni) negative conductor
Produces a millivolt signal proportional to the measured temperature for use with compatible temperature controllers, PLC modules, meters, and instrumentation
Suitable for monitoring heaters, ovens, furnaces, machinery, tanks, process equipment, and HVAC systems
Provides good sensitivity and dependable temperature measurement within its specified operating range
Compatible with temperature controllers and input modules configured specifically for Type J thermocouples
Industrial probe construction provides durability in demanding environments
Suitable for replacement, maintenance, OEM equipment, and new control-system installations
Probe length, cable length, mounting thread, connector type, and temperature rating may vary depending on the specific sensor configuration

Product Type: Thermocouple Temperature Sensor
Thermocouple Type: Type J
Positive Conductor: Iron (Fe)
Negative Conductor: Constantan (Copper-Nickel)
Sensor Technology: Thermoelectric
Output Signal: Millivolt (mV)
Typical Sensitivity: Approximately 50–55 µV/°C
Standard Temperature Range: Approximately -210°C to +760°C (-346°F to +1400°F)
Common Industrial Operating Range: 0°C to +750°C
Polarity:
- Positive: Iron
- Negative: Constantan
Standard: ANSI / IEC Type J
Compatible Equipment:
- Temperature Controllers
- PLC Thermocouple Input Modules
- Digital Temperature Meters
- Process Controllers
- Industrial Instrumentation
Applications:
- Industrial Ovens
- Furnaces
- Heating Equipment
- Process Control
- HVAC Systems
- Manufacturing Machinery
- Temperature Monitoring
- Industrial Automation
