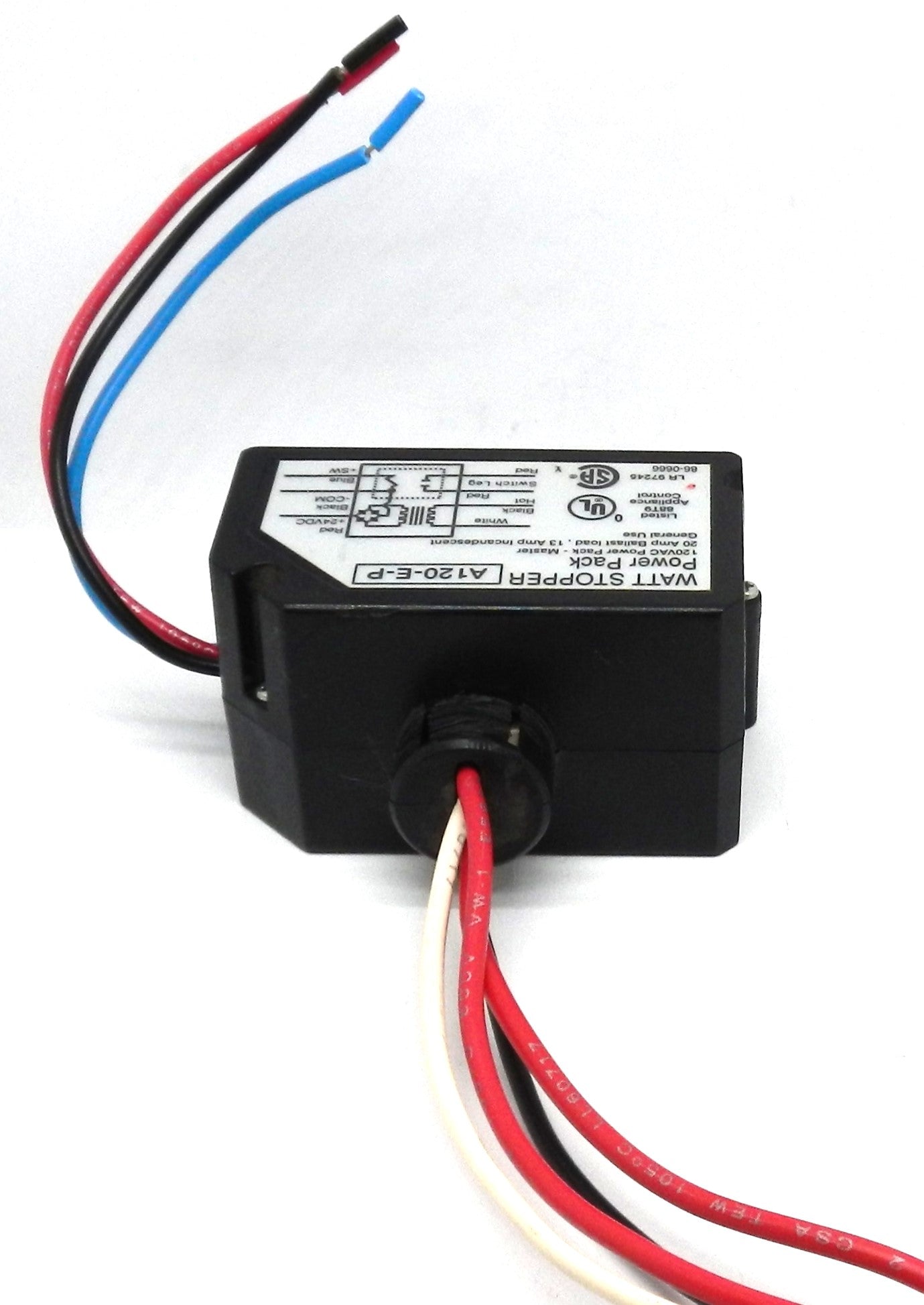

A120-E-P Wattstopper Power Pack 120VAC 20A Lighting Control Relay 24VDC Class 2

Description:

• Genuine Wattstopper master power pack for occupancy sensor and low-voltage lighting control systems
• Operates on 120 VAC, 60 Hz line voltage with 24 VDC Class 2 output for powering low-voltage occupancy sensors
• Heavy-duty 20A relay for switching lighting loads in commercial applications
• Provides up to 100 mA of low-voltage output for compatible Wattstopper sensors
• Designed for controlling lighting from occupancy sensors, low-voltage switches, and lighting automation systems
• Compact snap-in / 1/2 in. knockout mounting design for quick installation in junction boxes
• Plenum rated and suitable for commercial ceiling installations
• Ideal for offices, schools, warehouses, retail stores, conference rooms, healthcare facilities, and commercial buildings
• Manufactured by Legrand Wattstopper for reliable commercial lighting control performance.

Specifications:

• Manufacturer Name: Legrand Wattstopper
• Part Number (MPN): A120-E-P
• Product Series: A Series
• Product Type: Power Pack
• Input Voltage: 120 VAC
• Input Frequency: 60 Hz
• Output Voltage: 24 VDC Class 2
• Output Current: 100 mA (64 mA available after relay connection)
• Relay Rating:
  • 20A Ballast
  • 13A Tungsten
  • 1 HP Motor
• Mounting Type: 1/2 in. Knockout / Snap-In
• Wire Connection: Flying Leads
• Wire Size: 18–22 AWG (Low Voltage)
• Enclosure Material: UL 94V-0 Flame-Rated Plastic
• Installation Location: Indoor / Plenum Rated
• Certifications: UL Listed, cUL Listed, RoHS Compliant
• Warranty: 5 Years
• Application: Occupancy Sensors, Lighting Control Systems, Commercial Buildings, Offices, Schools, Retail Stores, Warehouses, Healthcare Facilities.

Dimensions:

• Height: 2.6 in (66 mm)
• Width: 3.0 in (76 mm)
• Depth: 1.6 in (41 mm)
• Mounting: 1/2 in. Snap-In Knockout

Weight:

• Approximate Weight: 0.5 lb (0.23 kg).
