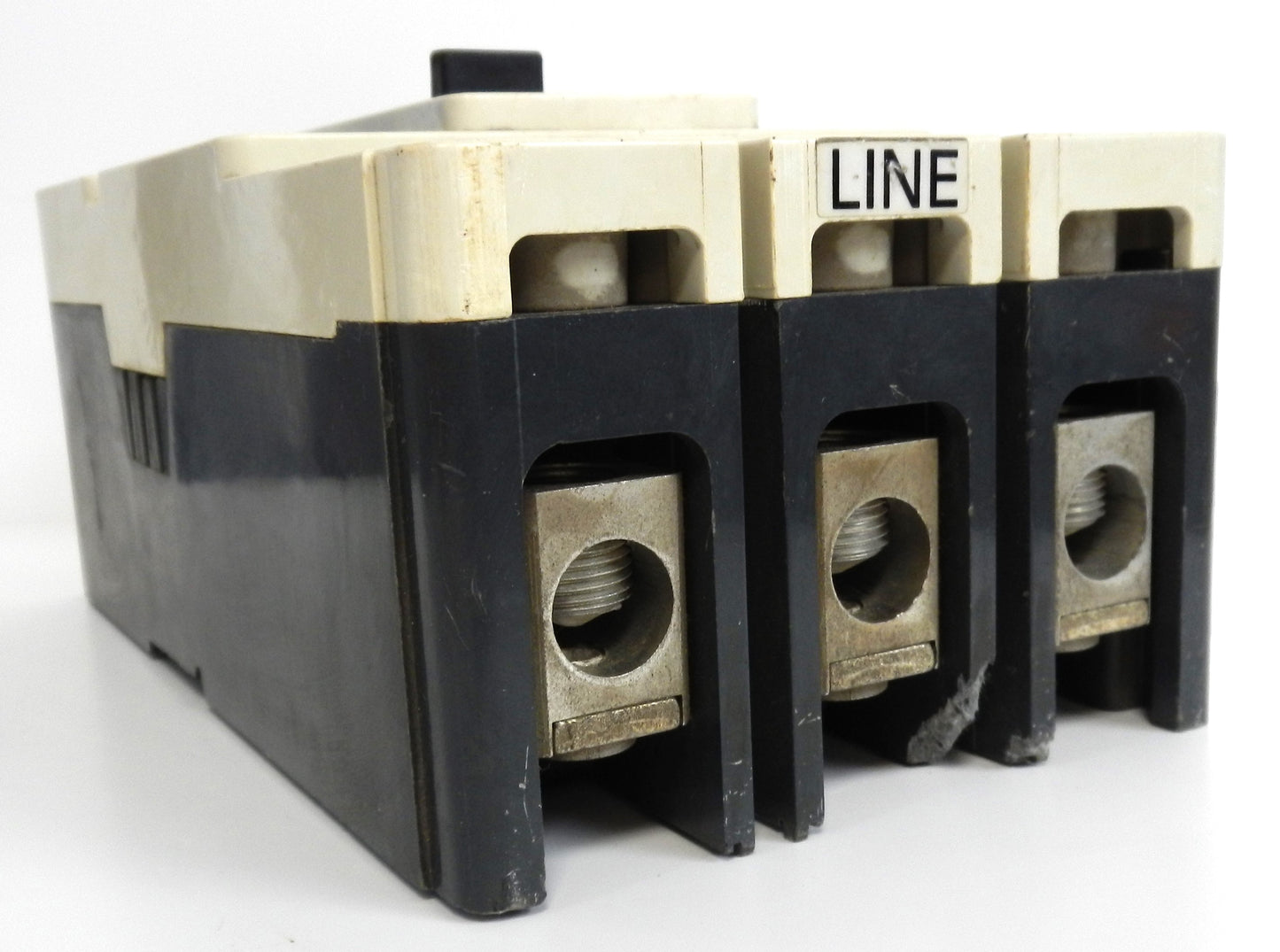

HKD3400F Westinghouse Series C 400A 3-Pole Thermal Magnetic Molded Case Circuit Breaker 600VAC

Description:

• Genuine Westinghouse Series C molded case circuit breaker for industrial power distribution and equipment protection
• Rated for 400 Amps with a 3-pole configuration for three-phase electrical systems
• Thermal-magnetic trip unit provides reliable overload and instantaneous short-circuit protection
• Rated for 600 VAC, 250 VDC, 50/60 Hz operation
• K-Frame HKD breaker designed for commercial and industrial power distribution applications
• Bolt-on installation for secure mounting in compatible switchboards and panelboards
• High interrupting capacity of 100 kAIC at 240 VAC and 65 kAIC at 480 VAC
• Suitable for feeder protection, motor control, industrial machinery, OEM equipment, and electrical distribution systems
• Compatible with Eaton/Cutler-Hammer Series C replacement applications following the Westinghouse product transition.

Specifications:

• Manufacturer Name: Westinghouse Electric (Now Eaton/Cutler-Hammer Series C)
• Part Number (MPN): HKD3400F
• Product Series: Series C
• Product Type: Molded Case Circuit Breaker
• Number of Poles: 3
• Rated Current: 400 A
• Frame Size: K-Frame
• Breaker Type: HKD
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Rated AC Voltage: 600 VAC
• Rated DC Voltage: 250 VDC
• Frequency: 50/60 Hz
• Interrupt Rating:
  • 100 kAIC @ 240 VAC
  • 65 kAIC @ 480 VAC
• Mounting Type: Bolt-On
• Certifications:
  • UL Listed
• Applications:
  • Industrial Power Distribution
  • Motor Protection
  • Switchboards
  • Panelboards
  • Manufacturing Equipment
  • OEM Machinery
  • Commercial Electrical Systems

Dimensions:

• Height: 5.5 in (140 mm)
• Width: 5.5 in (140 mm)
• Depth: 4.1 in (104 mm)

Weight:

• Approximate Weight: 9.8 lb (4.45 kg).
