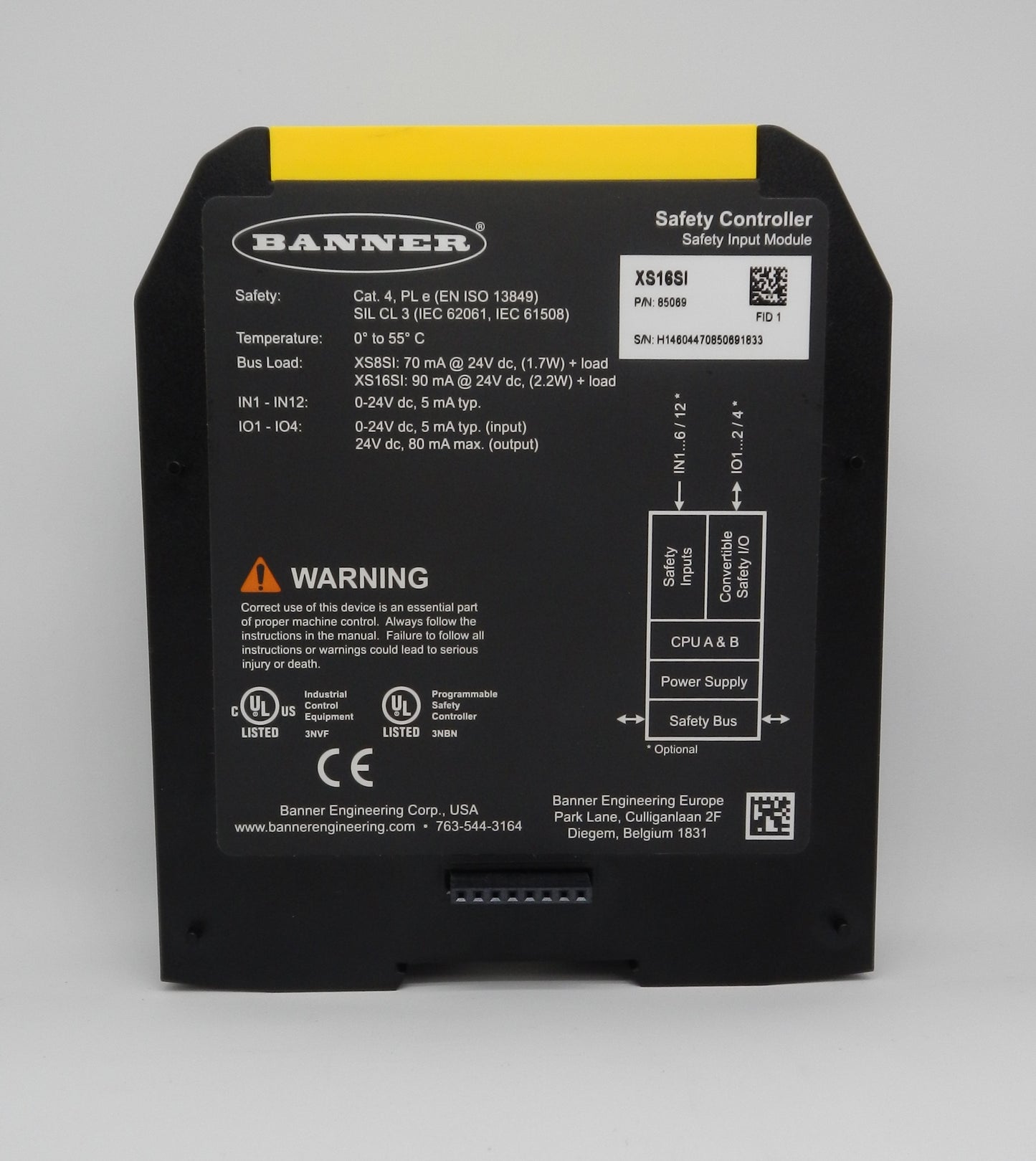

XS16SI Banner Engineering XS26 Safety Controller 16-Input Expansion Module SIL3 PLe

Description:

• Genuine Banner Engineering safety controller expansion module for XS26 safety controller systems
• Provides 16 configurable safety inputs, including 4 convertible inputs that can be configured as non-safe outputs
• Designed exclusively for use with Banner XS26-2 expandable safety controllers
• Removable screw terminals simplify installation, maintenance, and field wiring
• Supports Category 4, Performance Level e (PLe), and SIL 3 machine safety applications
• Compatible with emergency stop buttons, safety gates, light curtains, laser scanners, safety mats, rope pull switches, two-hand controls, and muting circuits
• Compact DIN rail-mounted design for industrial control panels
• Ideal for machine safety, packaging equipment, robotics, material handling, manufacturing, and industrial automation
• Active Banner Engineering product with support for expandable machine safety systems.

Specifications:

• Manufacturer Name: Banner Engineering
• Part Number (MPN): XS16SI
• Product Series: XS26
• Product Type: Safety Controller Input Expansion Module
• Number of Safe Inputs: 16
• Convertible Inputs: 4
• Safety Category: Category 4
• Performance Level: PLe (ISO 13849-1)
• SIL Rating: SIL 3 (IEC 61508 / IEC 62061)
• Protection Rating: IP20
• Mounting Type: 35 mm DIN Rail
• Terminal Type: Removable Screw Terminals
• Supply Voltage: 24 VDC
• Power Consumption:
  • 0.09 A (No Load)
  • 0.41 A (Full Load)
• Recovery Time:
  • 250 ms Typical
  • 400 ms Maximum
• Operating Temperature: 0°C to +55°C
• Relative Humidity: 90% at 50°C
• Compatible Controller: Banner XS26-2 Safety Controller
• Applications:
  • Emergency Stop Circuits
  • Safety Gate Monitoring
  • Light Curtains
  • Safety Laser Scanners
  • Safety Mats
  • Rope Pull Switches
  • Two-Hand Controls
  • Machine Safety Systems
  • Industrial Automation

Dimensions:

• Height: 110 mm (4.33 in)
• Width: 22.5 mm (0.89 in)
• Depth: 129 mm (5.08 in)

Weight:

• Approximate Weight: 0.20 kg (0.44 lb).
