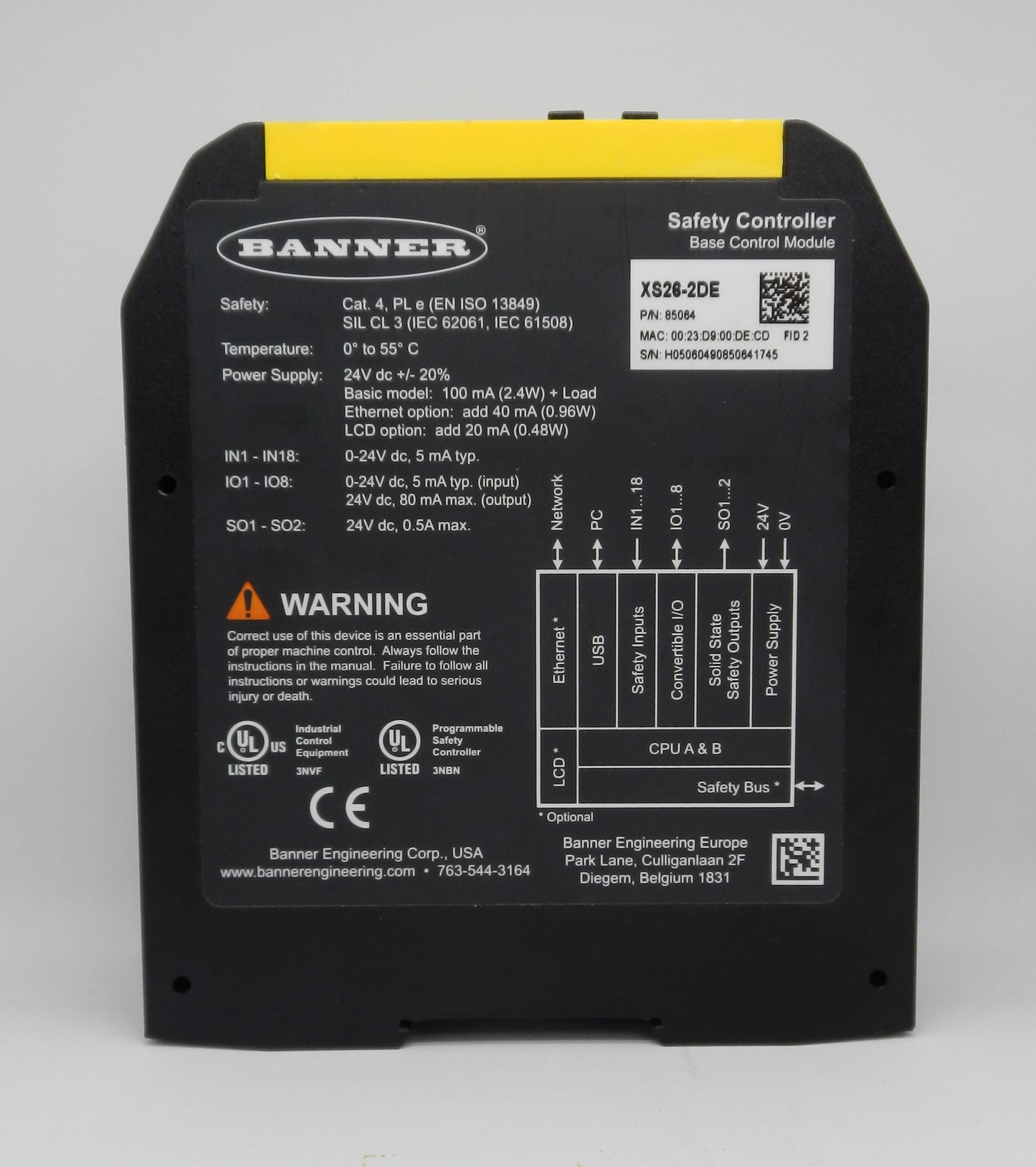

XS26-2DE Banner Engineering Expandable Safety Controller 26 Safe Inputs Ethernet USB 24VDC

Description:

• Genuine Banner Engineering expandable safety controller for advanced machine safety and industrial automation applications
• Provides 26 configurable safe inputs, including 8 convertible inputs, for connecting E-Stops, safety gates, light curtains, safety mats, two-hand controls, and other safety devices
• Features 2 pairs of PNP OSSD safety outputs (4 independently controlled safe outputs) rated at 0.5 A each
• Integrated Ethernet, USB, and LCD display for configuration, diagnostics, and network connectivity
• Supports EtherNet/IP, PROFINET, Modbus/TCP, and PCCC communication protocols
• Expandable architecture allows additional I/O modules to be added as application requirements grow
• Removable screw terminals simplify installation and maintenance
• Certified for Safety Category 4, Performance Level e (PL e), and SIL 3 applications
• Ideal for machine safeguarding, robotic cells, packaging machinery, conveyor systems, material handling, and OEM automation equipment
• Active product in the Banner XS26 Expandable Safety Controller family.

Specifications:

• Manufacturer Name: Banner Engineering
• Part Number (MPN): XS26-2DE
• Product Family: XS26
• Product Type: Expandable Safety Controller
• Supply Voltage: 24 VDC
• Current Consumption: 160 mA (Controller Only)
• Number of Safe Inputs: 26
• Convertible Inputs: 8
• Input Configuration: Configurable
• Safety Outputs:
  • 2 Pairs of PNP OSSD Outputs
  • 4 Independently Controlled Safe Outputs
• Safe Output Rating: 0.5 A @ 24 VDC
• Non-Safe Outputs: Up to 11 PNP Outputs
• Network Interfaces:
  • Ethernet
  • USB
• Supported Protocols:
  • EtherNet/IP
  • PROFINET
  • Modbus/TCP
  • PCCC
• Terminal Type: Removable Screw Terminals
• Display: Integrated LCD
• Protection Rating: IP20
• Operating Temperature: 0°C to +55°C
• Relative Humidity: 90% @ 50°C
• Safety Ratings:
  • Category 4
  • Performance Level PL e
  • SIL 3
• Mounting: 35 mm DIN Rail
• Applications:
  • Emergency Stop Systems
  • Safety Gate Monitoring
  • Light Curtains
  • Safety Scanners
  • Two-Hand Control
  • Safety Mats
  • Robotics
  • Industrial Automation
  • Machine Safety

Dimensions:

• Height: 110 mm (4.33 in)
• Width: 45 mm (1.77 in)
• Depth: 129 mm (5.08 in).

Weight:

• Approximate Weight: 0.40 kg (0.88 lb).
