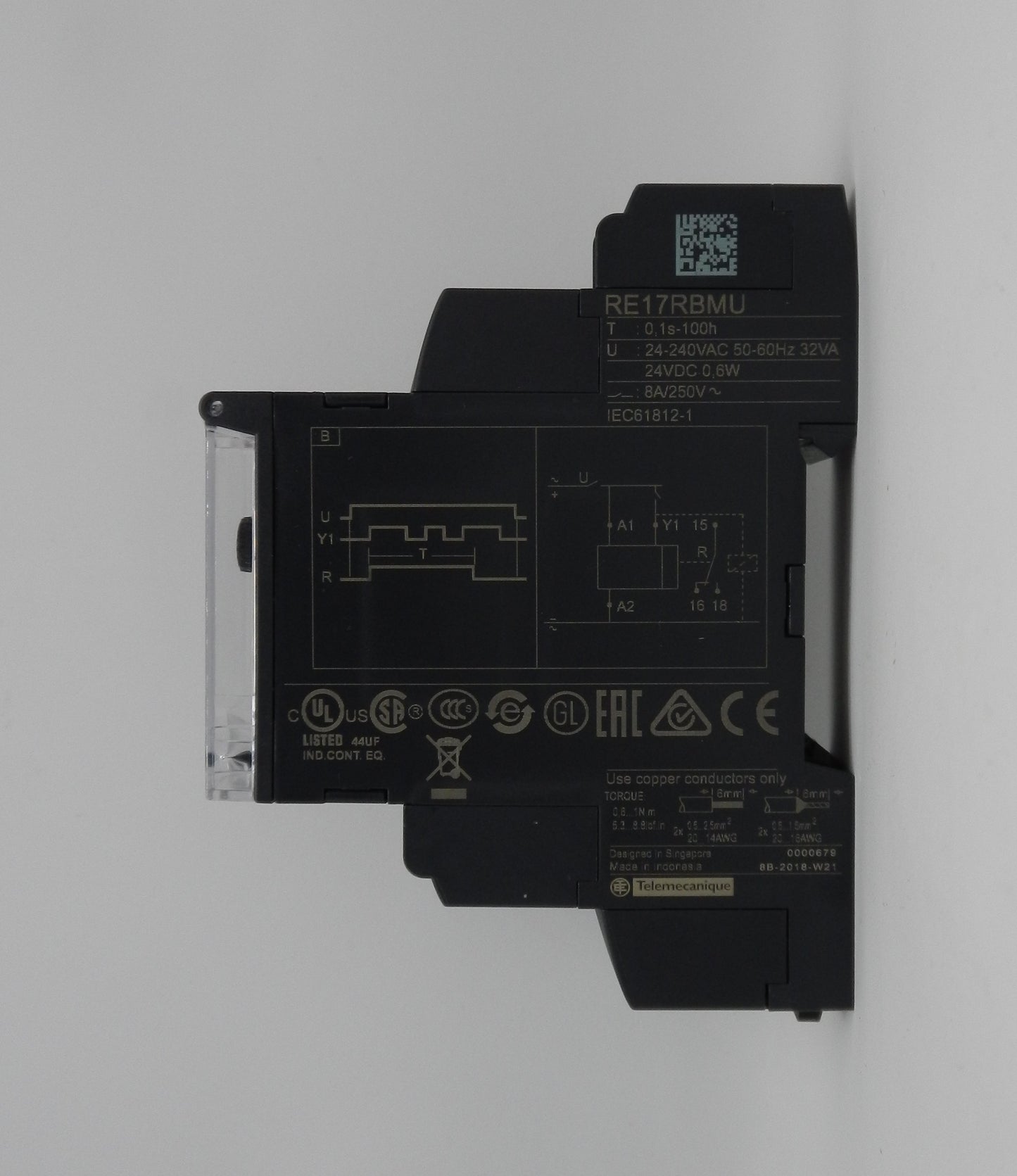

RE17RBMU Schneider Electric Zelio Time Relay 8A SPDT 24-240VAC/DC Single Interval DIN Rail Timer

Description:

• Genuine Schneider Electric Zelio Time single-function timing relay for industrial automation and control applications
• Provides single interval (one-shot) timing with an adjustable delay range from 0.1 seconds to 100 hours
• Features 1 SPDT (1 C/O) relay output rated at 8A
• Wide universal supply voltage of 24 VDC or 24–240 VAC/DC eliminates the need for multiple relay variants
• Compact 17.5 mm DIN rail-mounted design saves panel space
• Front-mounted rotary selectors allow easy adjustment of timing range and function
• LED indicators provide clear power and output status
• Screw terminal connections ensure secure field wiring
• Ideal for machine automation, conveyor systems, HVAC, pump control, lighting control, process automation, OEM equipment, and industrial control panels
• Part of the Harmony Zelio Time series by Schneider Electric.

Specifications:

• Manufacturer Name: Schneider Electric
• Part Number (MPN): RE17RBMU
• Product Series: Harmony Zelio Time
• Product Type: Modular Timing Relay
• Timing Function: Single Interval (One Shot)
• Time Range:
  • 0.1–1 s
  • 1–10 s
  • 6–60 s
  • 1–10 min
  • 6–60 min
  • 1–10 h
  • 10–100 h
• Supply Voltage:
  • 24 VDC
  • 24–240 VAC/DC
• Supply Frequency: 50/60 Hz
• Output Contacts: 1 Changeover (SPDT / 1 C/O)
• Contact Rating: 8 A @ 250 VAC
• Mounting Type: 35 mm DIN Rail
• Terminal Type: Screw Terminals
• Width: 17.5 mm
• Electrical Life: 100,000 Operations @ 8 A, 250 VAC
• Mechanical Life: 10 Million Operations
• Operating Temperature: -20°C to +60°C
• Protection Rating: IP20
• Certifications:
  • CE
  • UL
  • CSA
  • IEC Compliant
• Applications:
  • Industrial Automation
  • Machine Control
  • Conveyor Systems
  • Pump Control
  • HVAC Systems
  • Lighting Control
  • Process Control
  • OEM Equipment

Dimensions:

• Height: 90 mm (3.54 in)
• Width: 17.5 mm (0.69 in)
• Depth: 72 mm (2.83 in).

Weight:

• Approximate Weight: 0.077 kg (0.17 lb
